5 Inch 40pin RGB 800x480 Tft Ips Display

Product Categories
Shenzhen Sunmeg Technology Co., Ltd
Contact Now

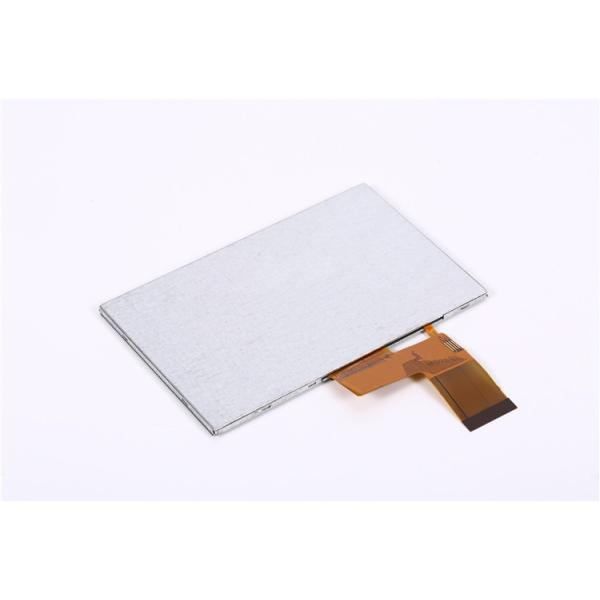

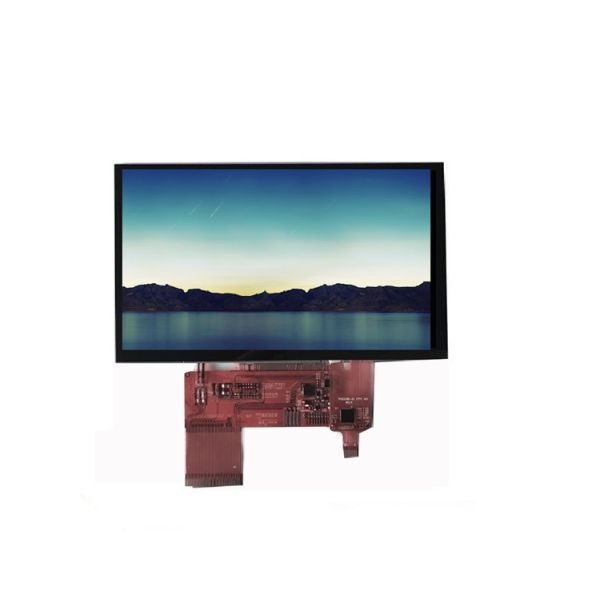

5 Inch 40pin RGB 800x480 Tft Ips Display

Brand Name : SUNMEG

Model Number : LX50002LX-02

Certification : CE,FCC,ROHS

Place of Origin : China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 60K pcs/month

Delivery Time : 5-8 working days

Packaging Details : Standard export package

Type : 5 inch tft lcd display

Driver IC : ILI6122

customize : support

LCD Type : a-Si TFT Active Matrix

Resolution : 800*480

view angle : 6 0'CLOCK

Outline Dimensions : 120.7*75.9*4.38mm

Active Area : 108.00*64.80

Contact Now

We production capacity of LCD modules is up to 1500, 000 sets, and annual production

capacity is up to 18 million sets.Since established, the company is always united, diligent,

pragmatic, progressive, which is the spirit of enterprise, provides every employee a

broad space and incentives for development, with this positive company culture, we

gain a solid standing point in the increasingly fierce competition, which ensures we

can emerge and develop In the sunrise LCD industry. And in order to follow up

the development of business, we built one factory in Shenzhen .

Product name LCD TFT display
Outline Dimensions 120.7*75.9*4.38mm
Active Area 108.00*64.80
Display colors 65K /262K
Resolution (pixels) 800(RGB)*480
Viewing direction 12:00/all
Controller IC --
Active Area 108.0(W) x 64.8(H)
Interface type RGB
Backlight 12 CHIP WHITE LED
Operating temperature range -20----70 °C
Storage Temperature range -30----80 °C
Certification of registration ISO9001:2008

5 Inch 40pin RGB 800x480 Tft Ips Display5 Inch 40pin RGB 800x480 Tft Ips Display5 Inch 40pin RGB 800x480 Tft Ips Display5 Inch 40pin RGB 800x480 Tft Ips Display5 Inch 40pin RGB 800x480 Tft Ips Display


Quality Control :

Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.

FAQ:

Q: Can you customize the product? what do you need?
A: We can customize as needed, and the quantity has a minimum order quantity requirement.

Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.

Q: Can the LCD module be Export directly?
A: The products are through the relevant certification, it can be exported.

Q: Are you a trader or a factory?
A: We are manufacturers, have production trademark and production workers.

Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.

Q: How many years for warranty can you provide?
A: Normally 1 year. Can be longer but price should be modified.
